The Natural Naked-Eye Milky Way


Centre of the Milky Way Panorama (2011)

In this image I’ve tried to render the Milky Way in a view that simulates what you see with your unaided eyes.

The result is a celestial portrait in subtle shades of black and white.

This is a photo mosaic, but processed contrary to the usual methods – eliminating colour rather than enhancing it, and reducing contrast rather than boosting it. The result is a view that I think quite nicely matches what your eyes see, though certainly from a dark site. And in this case, you would need to be in the southern hemisphere to see this sweep of the Milky Way, from Aquila at left, to the Southern Cross at right, with the bright star clouds around the centre of the Galaxy in Sagittarius and Scorpius in the middle.

I’ve removed colours except for the muted colours of stars. And I’ve tried to render the stars with an intensity and dynamic range that the eye sees but that is often lost in long exposures.

The dark lanes of dust seen here really do look like this under dark skies. The nearby Coal Sack next to the Southern Cross does look a little darker than the rest of the sky. This view also captures another effect you can see in the real sky – the brighter sky below the Milky Way plane beneath Sagittarius and Aquila – there are more stars there, which make the background sky brighter than above the Milky Way plane (along the top of the photo) where the sky is permeated by dark obscuring dust.

This scene also frames the “dark Emu” – the shape drawn in the dark lanes that looks like a flightless emu in the sky. It’s an important “constellation” in Aboriginal mythology in Australia. The emu’s head is the Coal Sack at far right, her neck the long dark lane curving up through Centaurus and Lupus, and her tail the dark lanes at left in Ophiuchus, Scutum and Aquila.

I shot the original images for this panoramic mosaic in Chile in May 2011. You can see the full colour version in my “Milky Way Mosaic” post from 2011. The colours are wonderful. But there’s something enthralling about “capturing” the view more as your eyes – and mind – remember it.

– Alan, February 3, 2013 / © 2013 Alan Dyer

Milky Way Mosaic


Centre of the Milky Way Panorama (2011)

It’s taken me a few months to get around to the task, but at last! — my mosaic of the Milky Way I shot in Chile back in May.

The panorama is made up of 6 frames, stitched and blended together, extending from Crux, the Southern Cross (at right) to Aquila the eagle (at left) — a sweep of the Milky Way from Acrux to Altair! The mosaic is centred on the core of the Galaxy in Sagittarius and Scorpius.

Panoramas like this allow you to step back a distance and take in the big picture:

— You can see the large-scale structure of the dust clouds and the odd diagonal sweep of many of the clouds cutting across the plane of the Galaxy. I’ve never heard an explanation of why the dust lanes seem to have that structure and direction. I also see a 3D effect, with the nearby dust clouds hanging in front of and obscuring the bright starclouds of the distant inner spirals arms of our Galaxy.

— Also apparent are the extensive dust clouds at left extending from Ophiuchus (at top) down into Aquila, well below the plane of the Galaxy. Most wide-angle shots of the Milky Way I see tend to process out the subtle brown clouds that extend far off the Galactic plane. And they are brown, not black.

— And what really stands out is the band of bright blue stars from Scorpius (at top centre) to the right above the Milky Way through Lupus, Centaurus then down into Crux. This is a section of Gould’s Belt, a ring of hot blue stars around the sky that runs at an angle of about 20° to the Milky Way. This ring of hot, nearby stars surrounds us in our spiral arm and is thought to be only about 65 million years old, likely caused by some disturbance in our spiral arm which set off a wave of star formation close to us.

— And … as my Australian friends will point out, you can see the entire Dark Emu, made of the dust lanes from the Coal Sack in Crux at right (his head and beak), through the curving lanes in Centaurus (his neck), then sweeping up and over the centre of the Galaxy (his body) then down into Scutum and Aquila (his two feet and his tail).

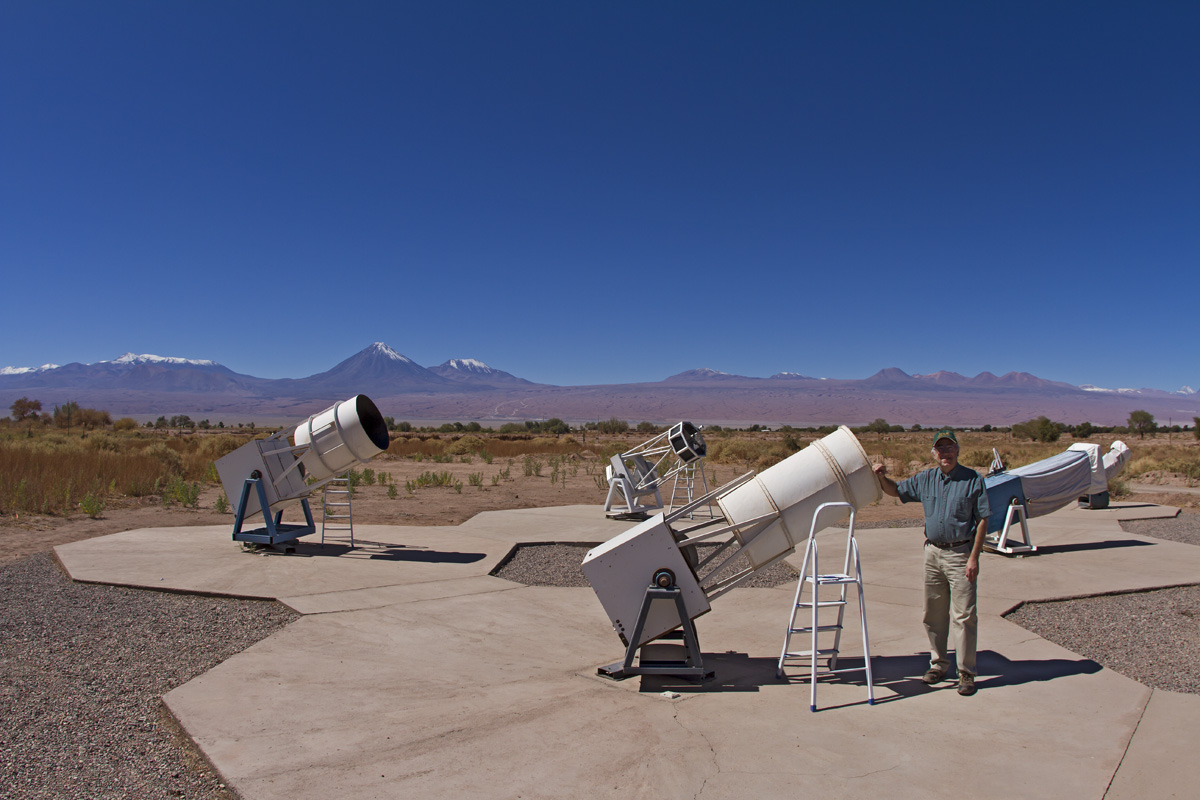

I took this panorama from the Atacama Lodge in north central Chile, using the Canon 5D MkII and Canon 35mm lens. Each of the 6 segments that went into this pan was itself a stack of 4 x 6 minute exposures, plus a fifth exposure through a soft-focus filter, all at f/4 and ISO 800. The camera was on a Kenko SkyMemo tracking platform. I assembled the pan with Photoshop CS5’s Photomerge command. This is actually only half of the full panorama mosaic, which extends for another 5 segments to the right along the Milky Way to Orion, taking in the entire southern portion of the Milky Way. But this is the best bit!

— Alan, Oct 2, 2011 / Image © 2011 Alan Dyer

Centaurus, Creator of Constellations


In George Lucas mythology, Luke Skywalker went to Yoda to learn the wisdom and ways of heroes. In Greek mythology, heroes the likes of  Achilles, Jason and Hercules sought out Chiron, the wise and kindly Centaur, who taught them science, astronomy, medicine, music, arts, hunting and archery.

Centaurs, the romping half man/half horse creatures, were a riotous and drunken lot, but not immortal Chiron. He was the offspring of Kronos and the ocean nymph Philyra and served as tutors to many legendary heroes. One reference in my library suggests Chiron actually invented the constellations, to make it easier for mankind to keep track of the stars and the season. To reward his work, Zeus placed Chiron in the stars, becoming by some accounts, this southern sky constellation, Centaurus.

However, most writings suggest Chiron is actually the Zodiac constellation of Sagittarius, while the constellation we call Centaurus is one of the wilder bunch, depicted in the sky as carrying the slain Lupus the wolf, drawn here in the fainter blue stars at top centre.

The bright stars at right are the main stars of Centaurus, including Alpha and Beta Centauri at lower right. Beta Centauri is the blue star, a giant some 390 light years away. But just to the left of Beta is yellow-white Alpha Centauri, a Sun-like star (or actually a pair of them orbiting each other) just 4.3 light years away.

Alpha and Beta Centauri sit at the start of a long dark rift in the Milky Way that splits into fingers of nebulosity reaching into Norma, Ara and Scorpius, here at the left edge of the frame.

I took this shot of Centaurus and Lupus in Chile last month, using a 50mm lens and a Canon 5D MkII. It’s a stack of four 6-minute exposures at f/4 and ISO 800, layered in with two exposures shot through a Kenko Softon-A filter to produce the photogenic star glows.

— Alan, June 26, 2011 / Image © 2011 Alan Dyer











Into the Heart of the Scorpion


Here we peer into the heart of Scorpius, to a place where the sky is painted with pastel hues unlike anywhere else in the heavens.

The yellow star at bottom is Antares, the cool supergiant star that marks the heart of the Scorpion. To the right is Messier 4, a globular cluster of thousands of stars. Wrapping the entire field are shrouds of dust, reflecting the yellow light of Antares and the blue light of hotter stars above, such as Rho Ophiuchi at top right. Glowing hydrogen gas clouds add the magenta hues.

The remarkable feature of this field are the dark fingers, clouds of dark interstellar stardust glowing with a dim yellowy-brown hue. In places the clouds become more opaque and intense, blocking any light from background stars. Those clouds must be close by in our galactic spiral arm because few stars lie between us and their dark masses. Estimates put them about 400 light years away.

The entire region is a busy factory of star making, one of the closest to our Sun. Chances are our solar system formed in a similar star factory 5 billion years ago, one that has long since dissolved away and dispersed around the Galaxy.

Like the previous shot, this is a Canon 7D/135mm telephoto image in a stack of six 2-minute exposures, taken from Chile in early May. I find it remarkable that with digital cameras just 2-minute exposures not only bring out the dark nebulas, but actually show them with colour and tonality. In the old days, film shots 20 minutes long only ever showed them as a mass of underexposed and featureless black.

— Alan, June 16, 2011 / Image © 2011 Alan Dyer

Off the Stinger Stars of Scorpius


Off the tail of Scorpius lies one of the great starry regions of the Milky Way. From southern Canada the Scorpion’s Tail barely clears our horizon at this time of year, on June nights. But from farther south, Scorpius crawls high into the sky — and the sky actually gets dark at solstice, so stargazers can see the starclouds of Scorpius in all their glory.

At right, the blue stars mark the “stinger” at the end of the Scorpion’s tail. The brightest one, called Shaula, or Lambda Scorpii, is a hot blue giant star some 10,000 times more luminous than our own modest Sun. It is also a triple star, with another luminous blue star orbiting it, plus a third odd mystery star thought to be either a neutron star or perhaps a young proto-object still in the process of forming a proper “main-sequence” normal star.

To the left lie two prominent clusters of stars: at top the Butterfly Cluster (a.k.a. Messier 6), a bright group of stars sitting amid a dark bay of dust. Below it, almost lost in the stars, is Ptolemy’s Cluster (a.k.a. Messier 7), that is an obvious sight to the unaided eye – so obvious the Greek astronomer Ptolemy catalogued it in 130 AD. Several other star clusters pepper the field.

This telephoto lens shot frames the field as binoculars would show it. I took this from Chile in early May, using the Canon 7D and 135mm lens, for a stack of six 2-minute exposures at f/2.8 and ISO 1250.

— Alan, June 16, 2011 / Image © 2011 Alan Dyer





A Window in the Stars


In this part of the sky the Milky Way takes on a surprising palette of hues. And it’s all due to dust.

The centrepiece of this shot is a bright star cloud in Sagittarius called, well, the Sagittarius Star Cloud! But not the Large one. This is the Small Sagittarius Star Cloud, a.k.a. Messier 24, a mass of stars with a single black eye. The dark spot, called Barnard 92, is a dense and opaque cloud of dust. Stardust — clouds of carbon soot blown out by aging stars — weaves all through this scene, creating the dark canyons winding through the stars. Obscuring dust also dims much of the background stars and discolours most of this part of the Milky Way a yellowish brown. It’s the same effect that dims the setting Sun a deep orange or red, as its light shines through haze and dust in the sky.

But here, the Star Cloud looks bluish and “cleaner.” That part of the Milky Way has less dust in front of it. And yet it is much farther away than the yellow dusty starfields around it. When we look toward the Small Sagittarius Star Cloud we are looking through a dust-free window, allowing us to see unencumbered right past our Galaxy’s nearby Sagittarius-Carina spiral arm to glimpse a dense part of the more distant Norma Arm, an inner spiral arm of our Milky Way Galaxy about 12,000 to 16,000 light years away.

To the lower right of M24 is M23, a rich cluster of stars 2,000 light years away, nearby by galactic standards, and so sits suspended in front of the fainter star background. The pinkish nebula at top is Messier 17, the Swan Nebula.

I took this shot May 2 from Chile, using the Canon 7D and 135 lens, for a stack of six 2-minute exposures.

— Alan, June 7, 2011 / Image © 2011 Alan Dyer





The Seven Sisters of the South


Down in the south sit many austral equivalents to namesake northern sky objects: the Southern Cross, the Southern Beehive, the Southern Pinwheel. This is the “Southern Pleiades,” a match to the famous Pleiades star cluster prominent in our northern hemisphere sky. Since our Pleiades also carries the moniker the “Seven Sisters,” I suppose that makes this object the “Seven Sisters of the South.”

The field here again duplicates what binoculars would show, and this is a lovely object for binos. Its resemblance to the northern Pleiades comes from this star cluster’s bright but scattered appearance, and the blue colour of its sorority of stars. Like its northern counterpart, the Southern Pleiades is a cluster of hot young stars which shine furiously blue in their energetic youth. This group is perhaps no more than 50 million years old, and like the northern Sisters, shines quite close by, just 480 light years away, putting it a stone’s throw away down our own galactic spiral arm.

Officially catalogued as IC 2602, and also dubbed the Theta Carinae Cluster, this clutch of blue stars shines just below the Carina Nebula (you can see both together in my earlier blog The Best Nebula in the Sky). A couple of other fainter star clusters also populate the field.

I took this shot with the Canon 7D and 135mm telephoto lens and stacked five 2-minute exposures. Stacking helps smooth out background noise, though in a wide field shot like this, the sheer number of stars tends to overwhelm any camera noise.

— Alan, June 4, 2011 / Image © 2011 Alan Dyer
