On November 11, I traveled to the near-flung corners of my backyard to observe the rare transit of Mercury across the Sun.

History is replete with tales of astronomers traveling to the far corners of the Earth to watch dark objects pass in front of the Sun — the Moon in eclipses, and Mercury and Venus in transits.

On November 11, to take in the last transit of Mercury until 2032, I had planned a trip to a location more likely to have clear skies in November than at home. A 3-day drive to southern Arizona was the plan.

But to attend to work and priorities at home I cancelled my plans. Instead, I decided to stay home and take my chances with the Alberta weather, perhaps making a run for it a day’s drive away if needed to chase into clear skies.

Transit of Mercury Selfie with Sun

As it turned out, none of that was necessary. The forecast for clear, if cold, skies held true and we could not have had a finer day for the transit. Even the -20° C temperatures were no problem, with no wind, and of course sunshine!

Plus being only steps from home and a warming coffee helped!

As it turned out, the site in Arizona I had booked to stay was clouded out for the entire event. So I was happy with my decision!

For my site in Alberta, as for all of western North America, the Sun rose with the transit in progress. But as soon as the Sun cleared the horizon there was Mercury, as a small, if fuzzy, black dot on the Sun.

Low Sun with Mercury in Transit

As the Sun rose the view became sharper, and was remarkable indeed — of a jet black dot of a tiny planet silhouetted on the Sun.

The Transit of Mercury Across the Sun (10 am MST)

I shot through two telescopes, my 4-inch and 5-inch refractors, both equipped with solar filters of course. I viewed through two other telescopes, for white-light and hydrogen-alpha filtered views.

I was able to follow the transit for three hours, for a little more than half the transit, until Mercury exited the Sun just after 11 a.m. MST. The view below is from moments before egress.

The Transit of Mercury Across the Sun (11 am MST)

I shot still frames every 15 seconds with each of the two cameras and telescopes, for a time-lapse, plus shot real-time videos.

Stacking a selection of frames taken a 1-minute intervals produced this composite of the transit, from just before mid-transit until Mercury’s exit, or “egress.”

Transit of Mercury Composite Across the Sun v2

I assembled all the best images and 4K videos together into a movie, which I narrated live at the telescope as the transit was happening. I hope this provides a sense of what it was like to view this rare event.

The Transit of Mercury from Alan Dyer on Vimeo.

We won’t see another until 2032, but not from North America. The next transit of Mercury viewable from here at home is not until 2049! This was likely my last transit, certainly for a while!

Transit of Mercury Trophy Shot

This was my trophy shot! Bagged the transit!

P.S.: For my video of the previous transit of Mercury in May 2016, see my blog post which includes a similar compilation video.

P.P.S.: And for tech details on the images and videos in this blog, please click through to Vimeo and the video description I have there of cameras, scopes, and settings.

Clear skies!

Alan, November 17, 2019 / © 2019 Alan Dyer / amazingsky.com



Shooting with Canon’s EOS Ra Camera


IC 1805 in Cassiopeia (Traveler and EOS Ra)

I had the chance to test out an early sample of Canon’s new EOS Ra camera designed for deep-sky photography.

Once every 7 years astrophotographers have reason to celebrate when Canon introduces one of their “a” cameras, astronomical variants optimized for deep-sky objects, notably red nebulas.

In 2005 Canon introduced the ground-breaking 8-megapixel 20Da, the first DLSR to feature Live View for focusing. Seven years later, in 2012, Canon released the 18-megapixel 60Da, a camera I still use and love.

Both cameras were cropped-frame DSLRs.

Now in 2019, seven years after the 60Da, we have the newly-released EOS Ra, the astrophoto version of the 30-megapixel EOS R released in late 2018. The EOS R is a full-frame mirrorless camera with a sensor similar to what’s in Canon’s 5D MkIV DSLR.

Here, I present a selection of sample images taken with the new EOS Ra.

Details on its performance is at my “first-look” review at Sky and Telescope magazine’s website.

IC 1805 in Cassiopeia (Traveler and EOS Ra)
The large emission nebula IC 1805 in Cassiopeia, aka the Heart Nebula. The round nebula at top right is NGC 896. The large loose star cluster at centre is Mel 15; the star cluster at left is NGC 1027. The small cluster below NGC 896 is Tombaugh 4. This is a stack of 8 x 6-minute exposures with the Canon EOS Ra mirrorless camera at ISO 1600 through the Astro-Physics Traveler apo refractor at f/6 with the Hotech field flattener. Stacked, aligned and processed in Photoshop.

Both versions of the EOS R have identical functions and menus.

The big difference is that the EOS Ra, as did Canon’s earlier “a” models, has a factory-installed filter in front of the sensor that transmits more of the deep red “hydrogen-alpha” wavelength emitted by glowing nebulas.

Normal cameras suppress much of this deep-red light as a by-product of their filters cutting out the infra-red light that digital sensors are very sensitive to, but that would not focus well.

NGC 7000 North America Nebula (105mm Apo & Canon EOS Ra)
The North America Nebula, NGC 7000, in Cygnus, taken with the new Canon EOS Ra factory-modified “astronomical” version of the Canon EOS R mirrorless camera. This is a stack of 4 x 6-minute exposures, with LENR on and at ISO 1600, through the Astro-Physics Traveler 105mm f/6 apo refractor with the Hutech field flattener.

I was sent an early sample of the EOS Ra, and earlier this autumn also had a sample of the stock EOS R.

Both were sent for testing so I could prepare a test report for Sky and Telescope magazine. The full test report will appear in an upcoming issue.

IC 1396 in Cepheus (Traveler and EOS Ra)
The large emission nebula IC 1396 in Cepheus with the orange “Garnet Star” at top, and the Elephant Trunk Nebula, van den Bergh 142, at bottom as a dark lane protruding into the emission nebula. This is a stack of 5 x 6-minute exposures with the Canon EOS Ra mirrorless camera at ISO 1600 through the Astro-Physics Traveler apo refractor at f/6 with the Hotech field flattener. Stacked, aligned and processed in Photoshop.

But my “first-look” review can be found here on the Sky and Telescope website.

Please click thru for comments on:

• How the Ra compares to previous “a” models and third-party filter-modified cameras

• How the Ra works for normal daylight photography

• Noise levels compared to other cameras

• Features unique to the EOS Ra, such as 30x Live View focusing

Messier 52 and the Bubble Nebula (Traveler and EOS Ra)
Messier 52 open cluster, at left, and the Bubble Nebula, NGC 7635 below and to the right of it, at centre, plus the small red nebula NGC 7538 at right. The open cluster at lower right is NGC 7510. All in Cassiopeia. This is a stack of 8 x 6-minute exposures at ISO 1600 with the Canon EOS Ra camera and Astro-Physics Traveler apo refractor at f/6 with the Hotech field flattener. No LENR dark frame subtraction employed as the temperature was -15° C.

For most of my testing I shot through my much-prized Astro-Physics Traveler, a 105mm aperture f/6 apochromatic refractor on the Astro-Physics Mach1 mount.

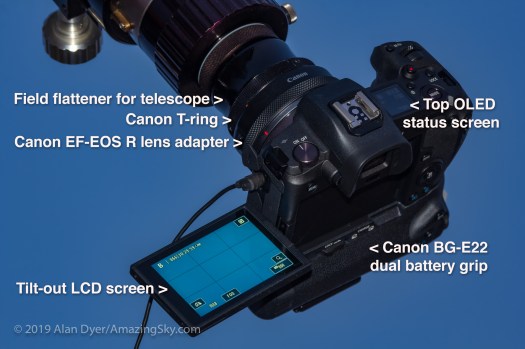

To connect the EOS Ra (with its new RF lens mount) to my existing telescope-to-camera adapter and field flattener lens I used one of Canon’s EF-EOS R lens adapters.

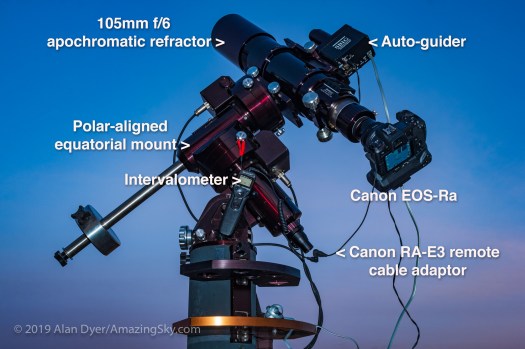

EOS Ra on Scope

EOS Ra on Scope CU

The bottom line is that the EOS Ra works great!

It performs very well on H-alpha-rich nebulas and has very low noise. It will be well-suited to not only deep-sky photography but also to wide-field nightscape and time-lapse photography, perhaps as Canon’s best camera yet for those applications.

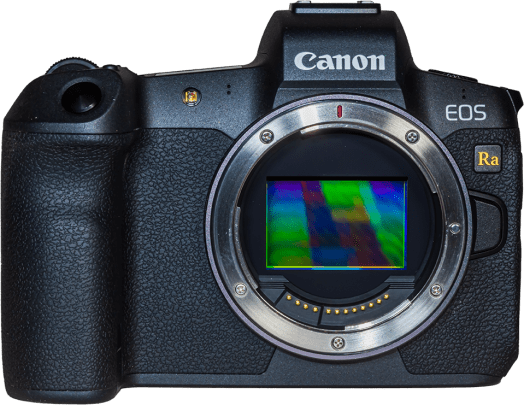

EOS Ra Front View-Face On

WHAT ABOUT THE PRICE?

The EOS Ra will sell for $2,500 US, a $700 premium over the cost of the stock EOS R. Some complain. Of course, if you don’t like it, you don’t have to buy it. This is not an upgrade being forced upon you.

As I look at it, it is all relative. When Nikon’s astronomy DSLR, the 36 Mp D810a, came out in 2015 it sold for $3,800 US, $1,300 more than the EOS Ra. It was, and remains a fine camera, if you can find one. It is discontinued.

A 36 Mp cooled and dedicated CMOS astro camera, the QHY367, with the same chip as the D810a, goes for $4,400, $1,900 more than the Ra. Yes, it will produce better images I’m sure than the EOS Ra, but deep-sky imaging is all it can do. At a cost, in dollars and ease of use.

And yes, buying a stock EOS R and having it modified by a third party costs less, and you’ll certainly get a good camera, for $300 to $400 less than an Ra. But …

• The EOS Ra has a factory adjusted white balance for ease of “normal” use — no need to buy correction filters. So there’s a $$ saving there, even if you can find clip-in correction filters for the EOS R — you can’t.

• And the Ra retains the sensor dust cleaning function. Camera modifier companies remove it or charge more to reinstall it.

• And the 30x live view is very nice.

• The EOS Ra also has the full factory warranty.

Do I wish the EOS Ra had some other key features? Sure. A mode to turn all menus red would be nice. As would an intervalometer built-in, one that works with the Bulb Timer to allow sequences of programmed multi-minute exposures. Both could be added in with a firmware update.

And providing a basic EF-EOS R lens adapter in the price would be a welcome plus, as one is essential to use the EOS Ra on a telescope.

That’s my take on it. I’ll be buying one. But then again I bought the 20Da, twice!, and the 60Da, and I hate to think what I paid for those much less capable cameras.

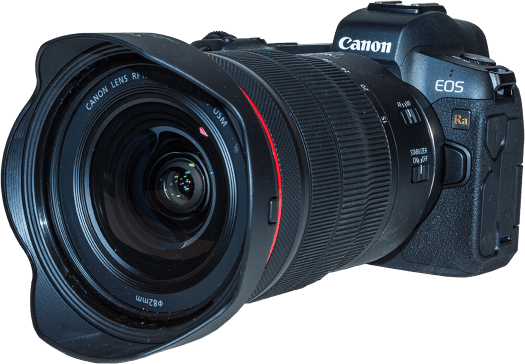

Canon EOS Ra and 15-35mm

BONUS TEST — The RF 15-35mm L Lens

Canon is also releasing an impressive series of top-class RF lenses for their R mirrorless cameras. The image below is an example astrophoto with the new RF 15-35mm f/2.8 L zoom lens, an ideal combination of focal lengths and speed for nightscape shooting.

Orion and Winter Stars Rising
Orion and the winter stars rising on a late October night, with Sirius just clearing the horizon at centre bottom, Capella and the Pleiades are at top. M44 cluster is at far left. Taken with the Canon 15-35mm RF lens at 15mm and f/2.8 and the EOS Ra camera at ISO 800 as part of testing. A stack of 4 x 2-minute exposures on the Star Adventurer tracker.

Below is a further set of stacked and processed images with the RF 15-35mm L lens, taken in quick succession, at 15mm, 24mm, and 35mm focal lengths, all shot wide open at f/2.8. The EOS Ra was on the Star Adventurer tracker (as below) to follow the stars.

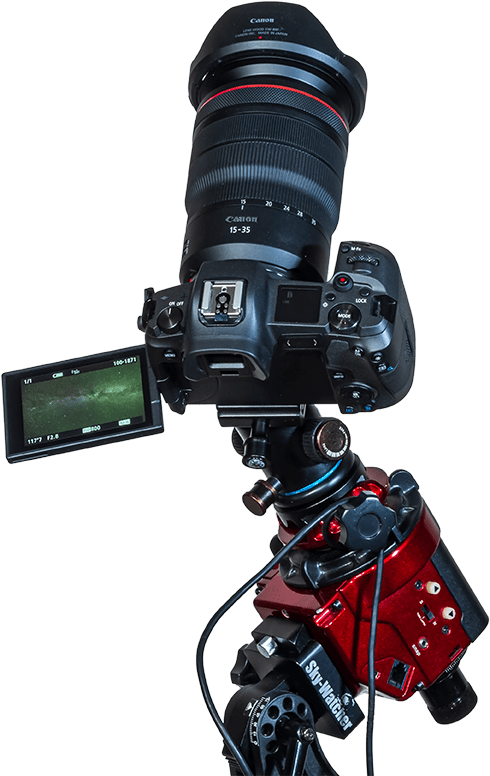

EOS Ra on Star Adventurer

Click or tap on the images below to view a full-resolution version for closer inspection.

Autumn Milky Way (15-35mm RF at 15mm + EOS Ra).jpg
15mm — Northern autumn Milky Way with RF 15-35mm at f/2.8 and at 15mm focal length. Taken with the EOS Ra at ISO 800 for a stack of 4 x 2-minute exposures.
Autumn Milky Way (15-35mm RF at 24mm + EOS Ra).jpg
24mm — Northern autumn Milky Way with RF 15-35mm at f/2.8 and at 24mm focal length. Taken with the EOS Ra at ISO 800 for a stack of 2 x 2-minute exposures.
Autumn Milky Way (15-35mm RF at 35mm + EOS Ra).jpg
35mm — Northern autumn Milky Way with RF 15-35mm at f/2.8 and at 35mm focal length. Taken with the EOS Ra at ISO 800 for a stack of 2 x 2-minute exposures.

The RF 15-35mm lens performs extremely well at 15mm exhibiting very little off-axis aberrations at the corners.

Off-axis aberrations do increase at the longer focal lengths but are still very well controlled, and are much less than I’ve seen on my older zoom and prime lenses in this focal length range.

The RF 15-35mm is a great complement to the EOS Ra for wide-field Milky Way images.

I was impressed with the new EOS Ra. It performs superbly for astrophotography.

Again, click through to Sky and Telescope for “first look” details on the test results.

— Alan, November 6, 2019 / UPDATED Nov 7, 2019 / © 2019 AmazingSky.com
